Portfolio Optimization

This notebook covers abaquant.portfolio: allocation families (mean-variance, risk-based, downside-risk), the Markowitz efficient frontier, Monte Carlo portfolio clouds, a compact backtest, and historical stress testing.

Sections:

1. Build a PortfolioAllocator

2. Allocation families

3. Efficient frontier and risk metrics

4. Backtest and stress tests

5. Visualizations

Setup

import abaquant
print(f"AbaQuant version: {abaquant.__version__}")

AbaQuant version: 1.0.0rc1

import numpy as np
import pandas as pd

from abaquant.portfolio.backtesting import run_backtest
from abaquant.portfolio.efficient_frontier import markowitz_frontier, monte_carlo_portfolios
from abaquant.portfolio.optimization import PortfolioAllocator
from abaquant.portfolio.risk_metrics import compute_all_metrics, portfolio_returns
from abaquant.portfolio.stress_testing import run_all_scenarios
from abaquant.visualization import VisualizationError

A small deterministic price/return panel

def sample_prices() -> pd.DataFrame:
    dates = pd.date_range("2025-01-02", periods=36, freq="B")
    trend = np.linspace(0.0, 1.0, len(dates))
    seasonal = np.sin(np.linspace(0.0, 4.0 * np.pi, len(dates)))
    return pd.DataFrame(
        {
            "ALPHA": 100.0 + 9.0 * trend + 1.8 * seasonal,
            "BETA": 82.0 + 6.0 * trend - 1.2 * seasonal,
            "GAMMA": 54.0 + 3.0 * trend + 0.7 * np.cos(np.linspace(0.0, 3.0 * np.pi, len(dates))),
        },
        index=dates,
    )

def sample_returns() -> pd.DataFrame:
    return sample_prices().pct_change().dropna()

prices = sample_prices()
returns = sample_returns()
returns.head()

	ALPHA	BETA	GAMMA
2025-01-03	0.008896	-0.003051	0.001106
2025-01-06	0.008018	-0.002403	0.000216
2025-01-07	0.006469	-0.001174	-0.000574
2025-01-08	0.004453	0.000479	-0.001212
2025-01-09	0.002221	0.002339	-0.001650

1. Build a PortfolioAllocator

The allocator groups three families of allocation strategies: mean_variance, risk_based, and downside_risk.

allocator = PortfolioAllocator(returns, annual_risk_free_rate=0.02)

2. Allocation families

Compare equal weight, minimum variance, maximum Sharpe, risk parity, inverse volatility, and minimum-CVaR allocations on the same universe.

allocations = {
    "equal_weight": allocator.mean_variance.equal_weight(),
    "minimum_variance": allocator.mean_variance.minimum_variance(),
    "maximum_sharpe": allocator.mean_variance.maximum_sharpe(),
    "risk_parity": allocator.risk_based.risk_parity(),
    "inverse_volatility": allocator.risk_based.inverse_volatility(),
    "minimum_cvar": allocator.downside_risk.minimum_cvar(alpha=0.05),
}

summary = {}
for name, result in allocations.items():
    weights = getattr(result, "weights", result)
    first_weight = float(weights.iloc[0]) if hasattr(weights, "iloc") else float(np.asarray(weights)[0])
    summary[f"{name}_alpha_weight"] = first_weight

for key, value in summary.items():
    print(f"{key:32s}: {value:.4f}")

equal_weight_alpha_weight       : 0.3333
minimum_variance_alpha_weight   : 0.4496
maximum_sharpe_alpha_weight     : 0.4500
risk_parity_alpha_weight        : 0.3438
inverse_volatility_alpha_weight : 0.2422
minimum_cvar_alpha_weight       : 0.4501

3. Efficient frontier and risk metrics

Trace the constrained Markowitz efficient frontier, sample a random portfolio cloud, and compute a full performance/risk summary for one fixed-weight portfolio.

mean_returns = returns.mean() * 252
covariance = returns.cov() * 252
frontier = markowitz_frontier(mean_returns, covariance, n_points=8)
cloud = monte_carlo_portfolios(mean_returns, covariance, n_portfolios=250, rf=0.02, seed=42)

weights = np.array([0.4, 0.35, 0.25])
portfolio_series = portfolio_returns(returns, weights)
metrics = compute_all_metrics(portfolio_series, rf=0.02)

print(f"Frontier points:   {len(frontier)}")
print(f"Cloud portfolios:  {len(cloud)}")
print(f"Sharpe ratio:      {metrics['Sharpe Ratio']:.4f}")
print(f"Max drawdown:      {metrics['Max Drawdown']:.4f}")

Frontier points:   8
Cloud portfolios:  250
Sharpe ratio:      39.0699
Max drawdown:      0.0000

frontier.head()

	Return	Volatility	ALPHA	BETA	GAMMA	Sharpe
0	0.564308	0.003313	0.475283	0.524717	0.000000	170.338660
1	0.504977	0.004638	0.354761	0.494026	0.151213	108.883058
2	0.445647	0.009414	0.254455	0.435556	0.309989	47.337831
3	0.386317	0.014219	0.154148	0.377087	0.468764	27.169874
4	0.326986	0.019030	0.053842	0.318618	0.627540	17.182896

4. Backtest and stress tests

Run a simple rebalanced backtest on prices, then apply predefined historical stress scenarios to a fixed-weight portfolio. For the richer, object-oriented backtesting API (rebalance schedules, transaction costs, benchmarks, rolling metrics), see notebook 19 — Portfolio Backtesting.

backtest = run_backtest(
    prices, strategy_name="equal_weight", rebalance_freq="monthly", lookback_days=8
)
stress_weights = pd.Series([0.4, 0.35, 0.25], index=prices.columns)
stress = run_all_scenarios(prices, stress_weights)

print(f"Backtest object created: {backtest is not None}")
print(f"Stress scenarios evaluated: {len(stress)}")

Backtest object created: True
Stress scenarios evaluated: 4

5. Visualizations

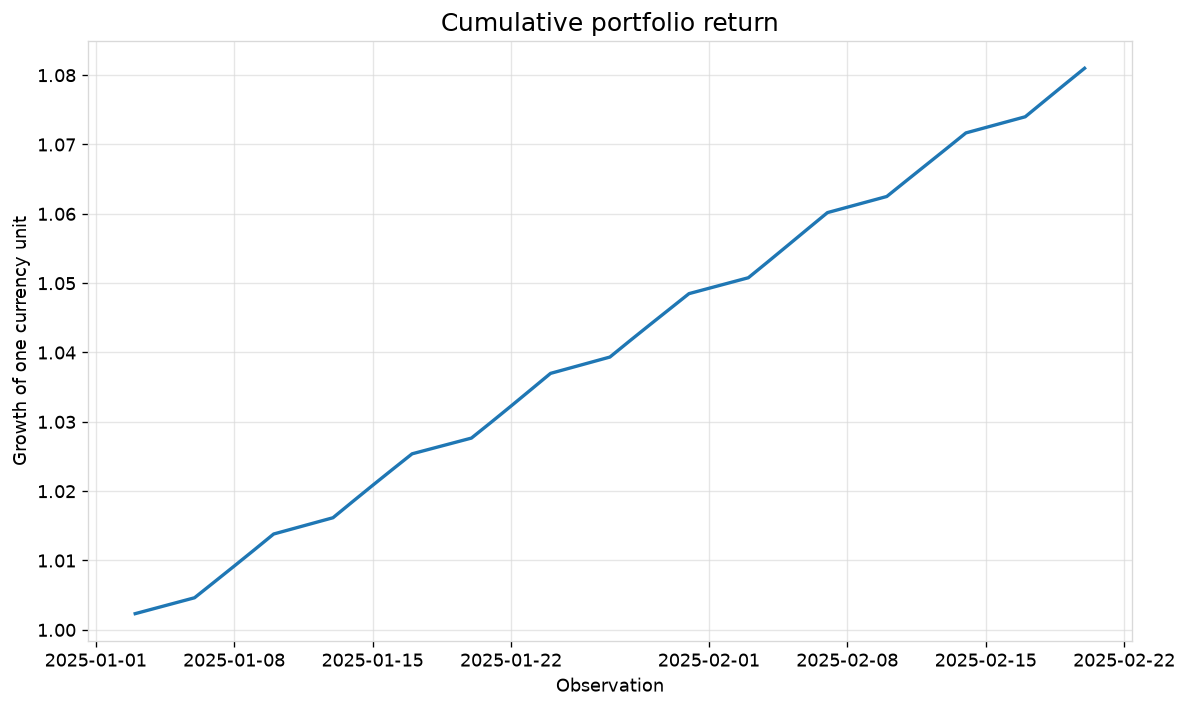

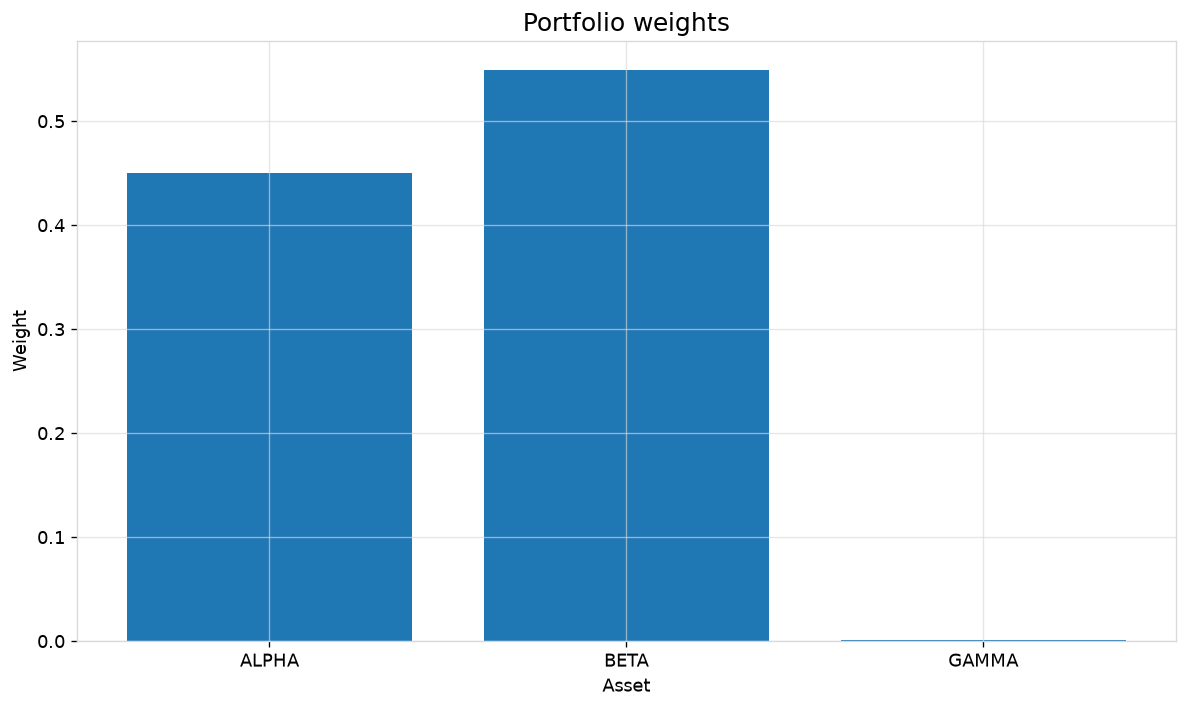

Allocation weights, cumulative-return path, and the asset-correlation heatmap.

try:
    max_sharpe_weights = allocations["maximum_sharpe"]
    figures = {
        "weights": allocator.visualize(weights=max_sharpe_weights, chart="weights"),
        "cumulative_returns": allocator.visualize(
            weights=max_sharpe_weights, chart="cumulative_returns"
        ),
        "correlation": allocator.visualize(chart="correlation"),
    }
    print(f"Created {len(figures)} figures: {list(figures)}")
except VisualizationError as exc:
    print(f"Visualization skipped (optional dependency missing): {exc}")

Created 3 figures: ['weights', 'cumulative_returns', 'correlation']

Takeaway

PortfolioAllocator composes three allocation philosophies behind one facade. Combine it with .backtest(), .scenario_analysis(), and .report() for a full research-to-report workflow — see notebooks 19 — Portfolio Backtesting, 14 — Scenario Analysis, and 21 — Exportable Reports.
